Machine tools in CNC machining centers have come a long way from the early days of manual mills and lathes. Today, there are a variety of machine tools that can be used to make precision parts with tight tolerances. In this blog post, we’ll take a look at 10 types of machine tools that are commonly used in CNC machines. We’ll also discuss the benefits of each tool and how it can be used to produce high-quality parts. Keep reading to learn more!

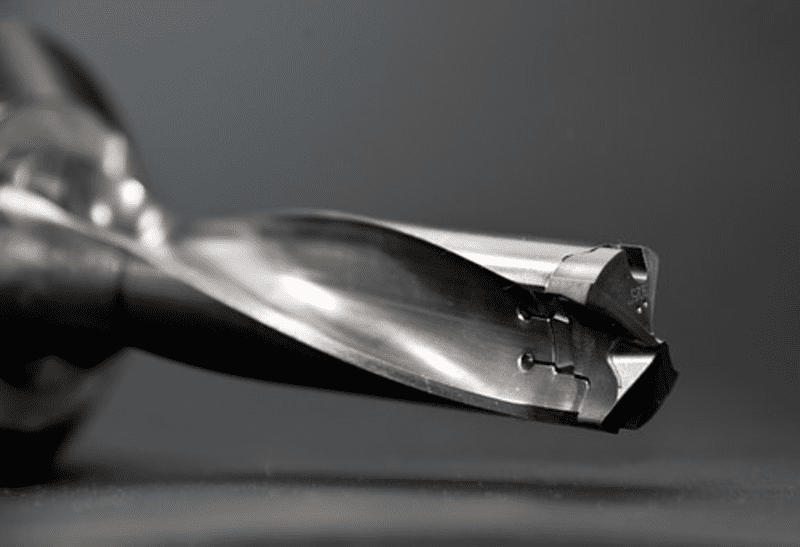

Drill Bits

The drill bit is one of the most important parts of a CNC machine. It is responsible for creating precise holes in the workpiece. In order to create these holes, the drill bit must rotate at high speeds and exert a large amount of force. The material of the drill bit is also important. It must be hard enough to withstand the high speeds and forces, but it must also be able to dissipate heat quickly to prevent damage to the workpiece. In addition, the flutes on the drill bit must be carefully designed to ensure that chips are removed quickly and efficiently. Without a well-designed drill bit, the CNC milling services would not be properly done.

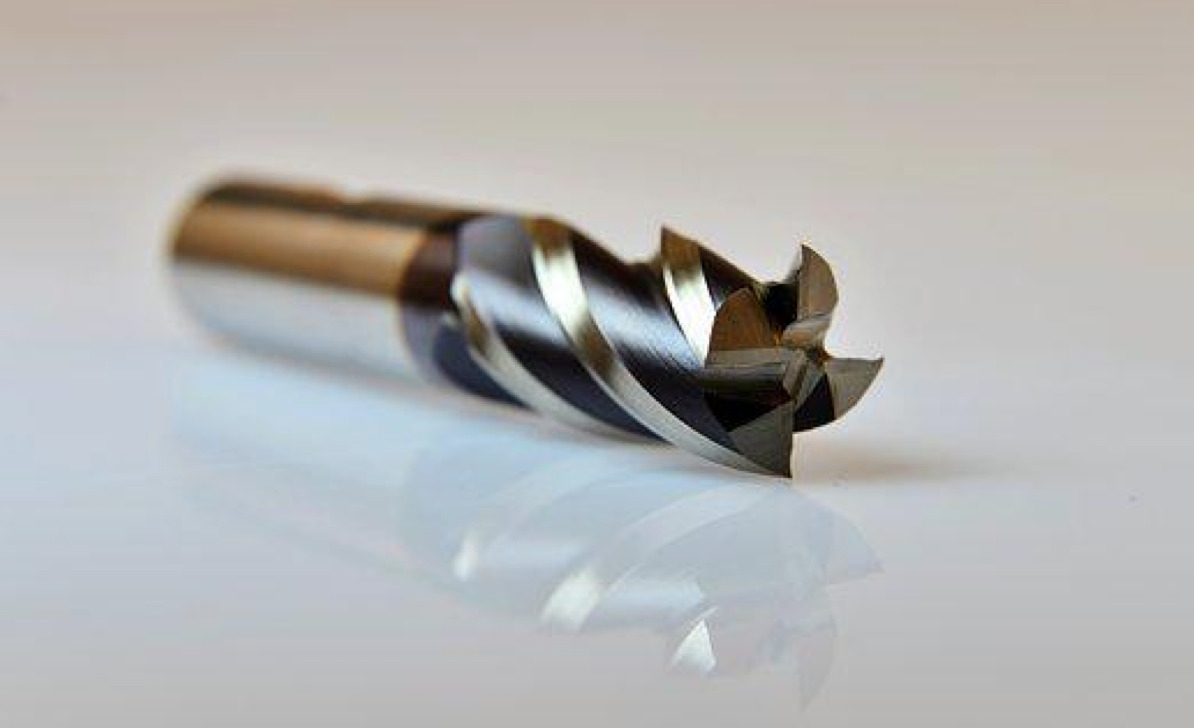

End Mill

End Mill

In a CNC machine, an end mill is responsible for a wide range of tasks. First and foremost, it’s used to create the shape of the workpiece. End mills can also be used to create pockets, chamfers, and other features on the workpiece. In addition, end mills can be used to remove material from the workpiece. This is done by moving the end mill in a linear fashion across the surface of the workpiece. End mills are also capable of performing drilling and tapping operations. In short, an end mill is a versatile tool that plays an important role in any CNC machine.

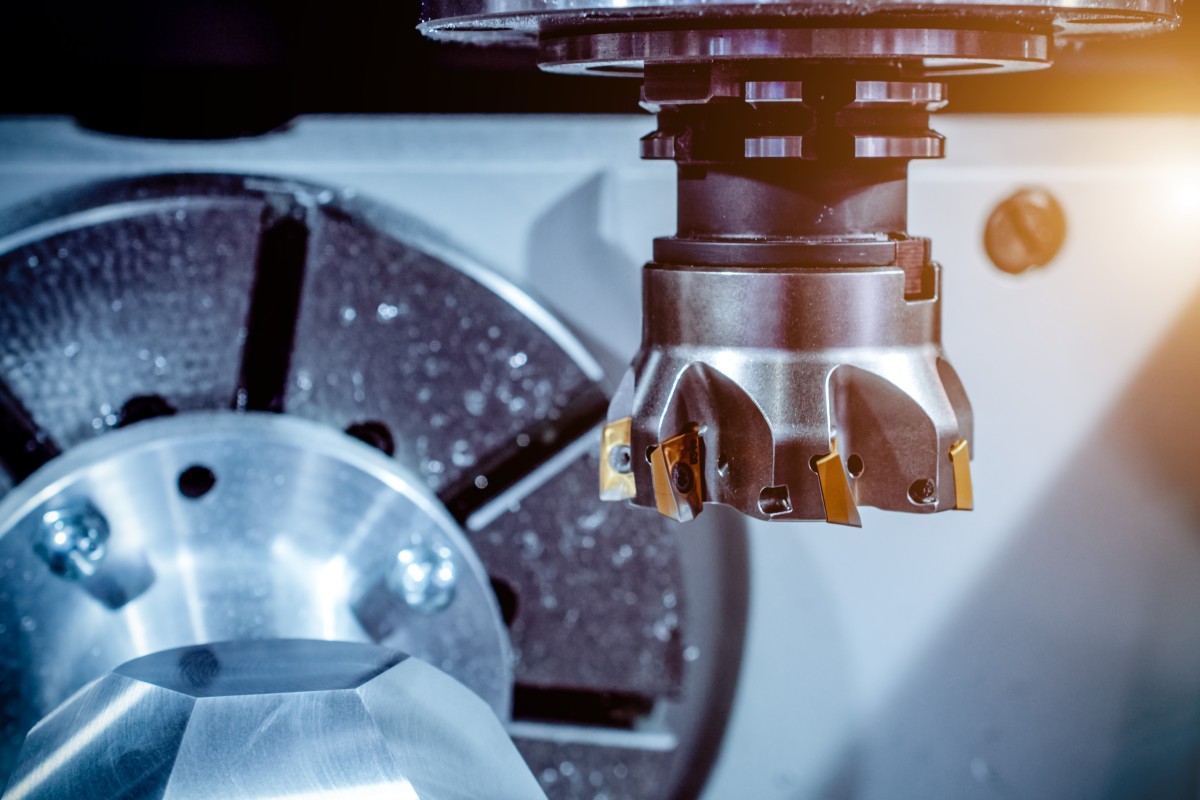

Face Mill

Face Mill

A face mill is a rotating cutting tool with multiple cutting blades that is mounted on the spindle of a CNC machine. The face mill is used to cut flat surfaces on workpieces. The face mill can also be used to cut slots, pockets, and other shallow features on workpieces. The main advantage of using a face mill over other types of cutting tools is that it can achieve high precision and repeatability. Face mills can also be used to cut metals, plastics, and composites. Face mills are available in many different sizes and configurations, and they can be made from a variety of materials.

Hollow Mill

Hollow Mill

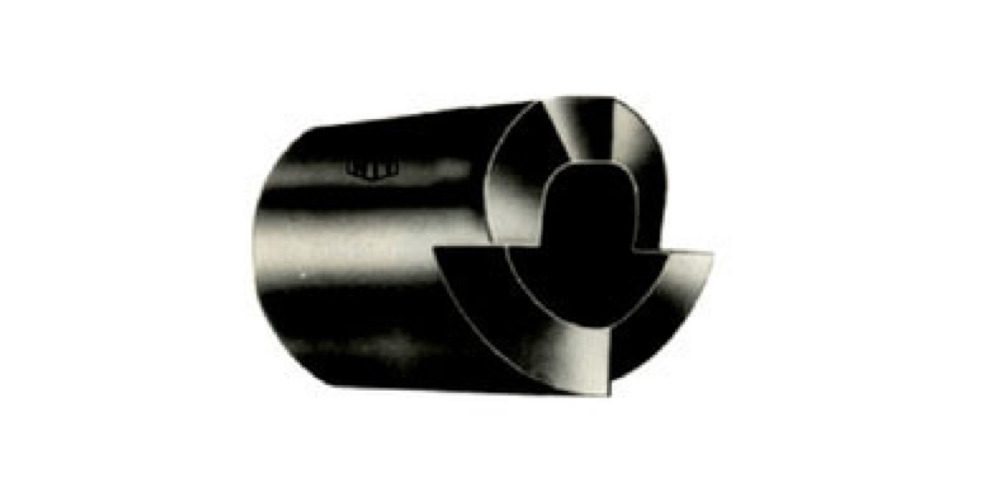

In a CNC machine, the function of a hollow mill is to remove material from a workpiece. The mill is a rotating cutting tool that has multiple cutting edges. The cutting edges interact with the workpiece to create chips, or small pieces of material that are removed from the workpiece. The hollow mill is uses include create pockets, or holes, in the workpiece. The size and shape of the pocket depends on the size and shape of the mill. In order to create a pocket, the hollow mill is first positioned over the area where the pocket is to be created. The cutting edges of the mill then interact with the material of the workpiece, removing material and creating the desired pocket.

Thread Mill

Thread Mill

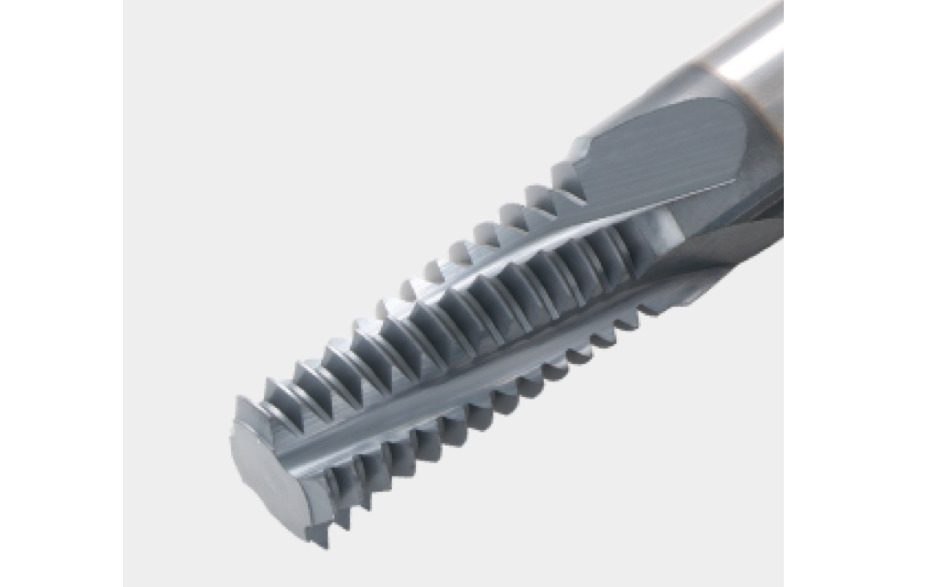

The thread mill is a Multi-Point cutting tool that generates threads by helical interpolation. The thread mill looks like a drill bit with threads on the outside diameter. The main function of the thread mill is to produce internal and external threads. Thread mills can cut external threads, internal threads, left-hand threads, or right-hand threads. Thread mills are used in CNC machining centers that have rotating spindles and linear axes. A single point threading tool is mounted in the chuck or collet of the machine. The tool is fed into the workpiece to create the thread form. Thread mills are used for mass production and for creating large diameter threads. Thread mills are also used for hard materials that are difficult to machine with single point tools. The main advantage of using a thread mill is that it is more economical than using a tap or a die. The disadvantages of using a thread mill are that it is slower than using a tap or a die and it cannot produce as large of a thread as a tap or die.

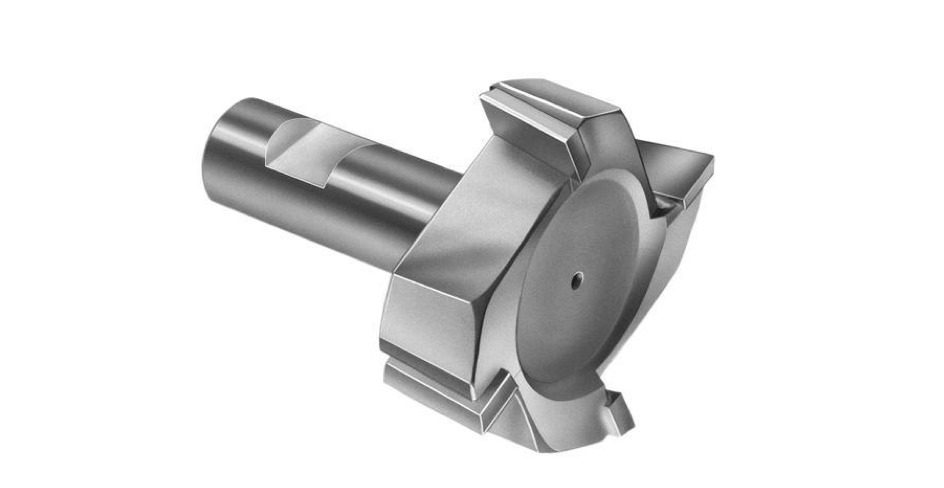

Slab Mill

Slab Mill

A slab mill is a type of cutting tool that is used in a computer numerical control (CNC) machine. The main function of a slab mill is to remove material from a workpiece in order to create a flat surface. Slab mills are available in a variety of sizes and styles, and they can be made out of high-speed steel (HSS), carbide, or cobalt. The choice of material depends on the hardness of the workpiece and the desired finish. In general, HSS is best suited for softer metals, while carbide and cobalt are better choices for harder materials. In addition, some slab mills are designed for use with specific materials, such as aluminum or copper. When selecting a slab mill for a CNC machine, it is important to choose one that is compatible with the machine and the specific application.

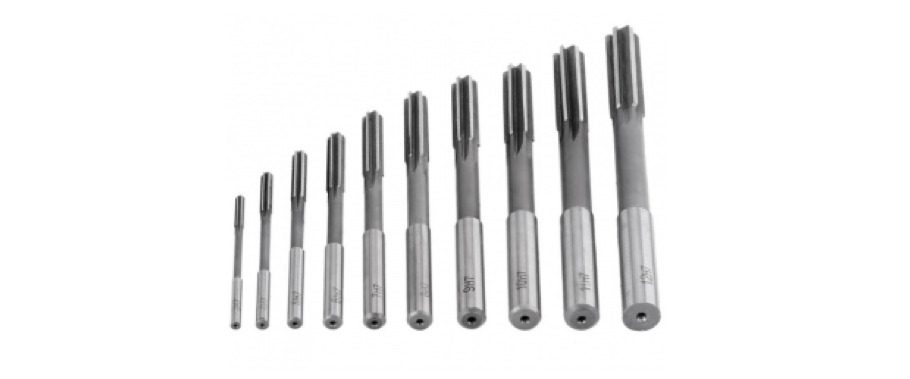

Reamers

Reamers

Reamers are cutting tools used in metalworking. A reamer is a type of rotary cutting tool used in machining. There are two types of reamers: hand reamers and machine (or power) reamers. Hand reamers are used manually, while machine reamers are powered by machines such as lathes, drill presses, or milling machines. Reamers are designed to enlarge the size of a preexisting hole by a small amount. To use a reamer, the workpiece must be secured in a chuck or Collet, and the tool must be held at the correct angle and rotated at the correct speed. The cutting edges of the tool will remove material from the hole, enlarging it until it reaches the desired size. Reaming is a precision machining process that produces a smooth, accurate finish on metal parts and components. It is often used to prepare holes for accepting bearings or other press-fit parts. Machine reaming is typically performed using CNC equipment, which offers greater accuracy and consistency than manual methods.

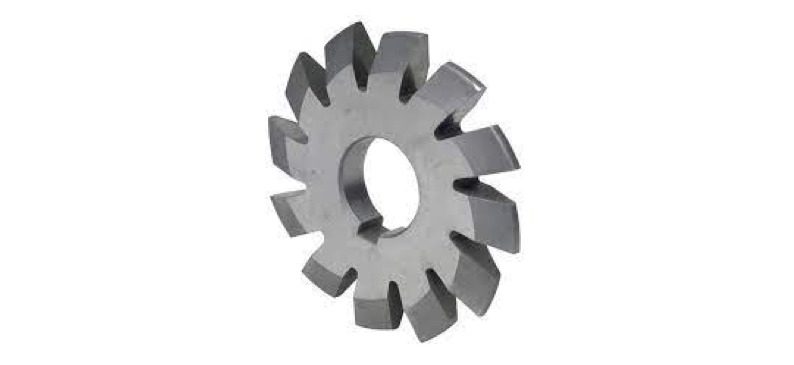

Gear Cutters

Gear Cutters

Gear cutters are cutting tools used to produce teeth on gears. The main function of a gear cutter is to remove material from the workpiece to create cogs with teeth. Gear cutters come in various shapes and sizes, and they can be classified according to the type of gear they are designed to cut. There are three main types of gear cutters: hobbing, shaping, and generating. Each type of gear cutter has its own advantages and disadvantages, so it is important to select the right cutter for the job at hand.

Hobbing gear cutters are used to cut spur gears and helical gears. They work by slowly removing material from the workpiece as it is rotated. This type of cutter is very precise and can produce Gears with a high degree of accuracy. However, hobbing gear cutters are also very expensive and require a high level of skill to operate.

Shaping gear cutters are used to cut bevel gears and worm gears. They work by slowly removing material from the workpiece as it is rotated. This type of cutter is very precise and can produce Gears with a high degree of accuracy. However, shaping gear cutters are also very expensive and require a high level of skill to operate.

Generating gear cutters are used to cut spiral bevel gears and hypoid gears. They work by slowly removing material from the workpiece as it is rotated. This type of cutter is very precise and can produce Gears with a high degree of accuracy. However, generating gear cutters are also very expensive and require a high level of skill to operate.

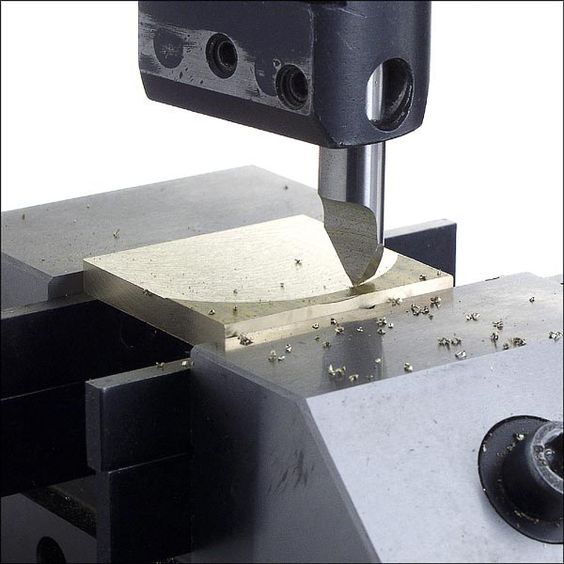

Fly Cutter

Fly Cutter

A fly cutter is a cutting tool that is used in a computer numerical control (CNC) machine. The main function of a fly cutter is to cut through material quickly and efficiently. Fly cutters can be used to cut through a variety of materials, including metals, plastics, and composites. In order to achieve the desired result, the cutting tool must be properly adjusted for the specific material being cut. In addition, the speed at which the cutting tool is rotated must be carefully controlled in order to avoid damaging the material or causing the tool to overheat. When used properly, a fly cutter can help to increase productivity and decrease waste in a CNC machining operation.

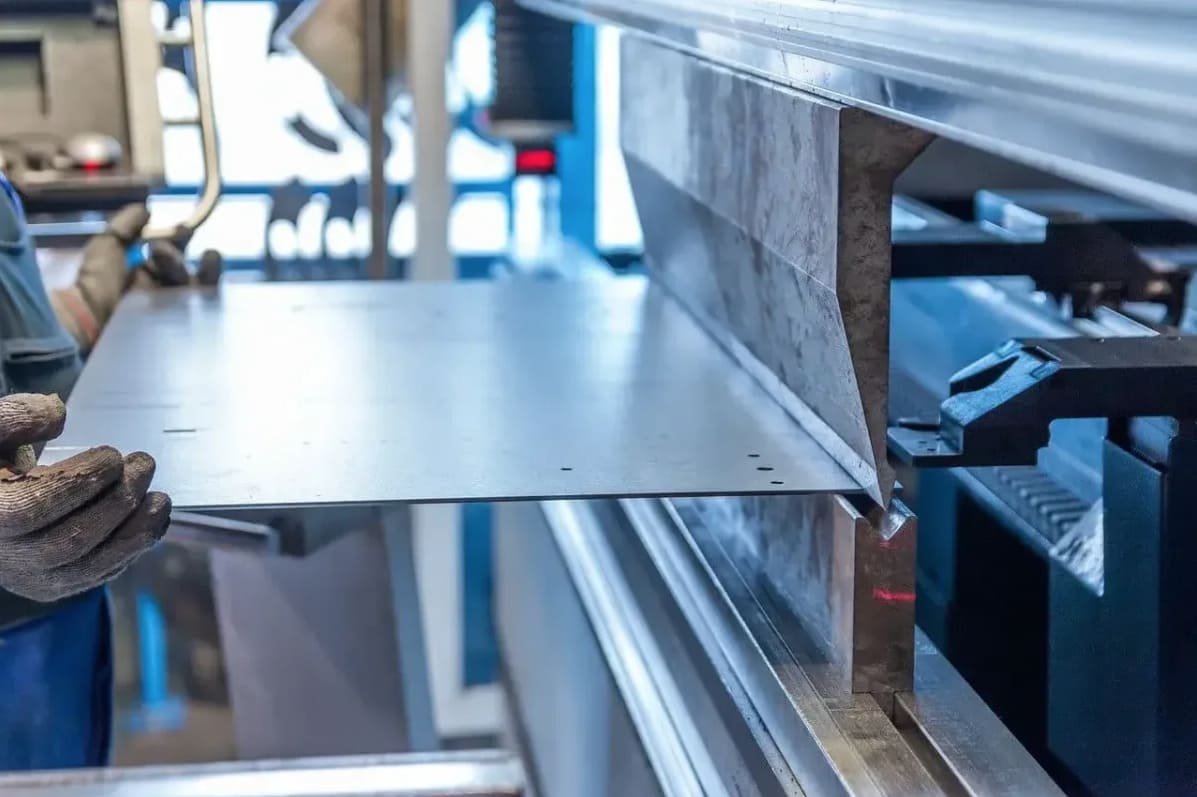

Bender

Bender

CNC machines are computer-controlled machine tools that are used to create parts with a high degree of accuracy. A CNC machine typically consists of three main components: a controller, a drive system, and a working table. The controller is the brains of the machine, and it is responsible for reading the instructions that tell the machine what to do. The drive system converts the controller’s instructions into mechanical motion, moving the cutting tool along the X, Y, and Z axes. The working table holds the material to be cut and can be moved along the X and Y axes. A bender is a special type of CNC machine that is used to create curved parts. A bender consists of a controller, a drive system, and a track. The track is a long, curved rail that the cutting tool follows as it bends the material. The bender’s track is much longer than its working table, which allows it to create very large or very small radius bends. The bender’s controller is programmed with the dimensions of the desired bend, and the drive system moves the cutting tool along the track to create the bend. Because benders can produce parts with very tight tolerances, they are often used in industrial applications where precision is essential.

In Conclusion:

When it comes to tools used in the CNC machine, there’s no question that all the above mentioned are essential in making quality precision part. According to the functions discussed above, there is no doubt that each tool plays an essential role for the CNC machine to deliver to the expectations.
